CKlearAppTuner Class Reference

Abstract tunig baseclass Tuning adapted from the t/s/c-zap files from the dvb-utils projects and vdr. More...

#include <CKlearAppTuner.h>

Inheritance diagram for CKlearAppTuner:

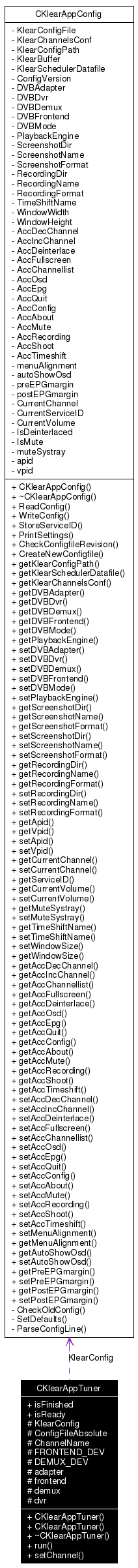

Collaboration diagram for CKlearAppTuner:

Public Member Functions
	CKlearAppTuner ()
	Constructor.
	CKlearAppTuner (CKlearAppConfig *KlearConfig)
	overloaded Constructor
virtual	~CKlearAppTuner ()
	Destructor.
virtual void	run ()=0
	starts the threaded main method, defined abstract
virtual void	setChannel (const QString &ChannelName)
	Sets the local ChannelName to tell tuner which channel wants to be tuned in.
Data Fields
bool	isFinished
	isFinished flag, tells other threads that the tuner has finished. Will be set with setter/getter in future.
bool	isReady
	isReady flag, tells other thread that tuner is set up. Will be set with setter/getter in future.
Protected Attributes
CKlearAppConfig *	KlearConfig
	local configuration object, for derived tuner classes
QString	ConfigFileAbsolute
	Absolute filename to configuration file.
QString	ChannelName
	currentlich tuning channelname
QString	FRONTEND_DEV
	frontend-name in dvbutil compatible format.
QString	DEMUX_DEV
	demux-name in dvbutil compatible format.
int	adapter
	DVB adapter number in dvbutil compatible format.
int	frontend
	DVB frontend number in dvbutil compatible format.
int	demux
	DVB demux number in dvbutil compatible format.
int	dvr
	DVB dvr number in dvbutil compatible format.

---

Detailed Description

Abstract tunig baseclass Tuning adapted from the t/s/c-zap files from the dvb-utils projects and vdr.

Author:

Klear.org

---

Constructor & Destructor Documentation

CKlearAppTuner::CKlearAppTuner (   )

Constructor. Author: Marco Kraus <marco@klear.org>

CKlearAppTuner::CKlearAppTuner (  CKlearAppConfig *  KlearConfig  )

overloaded Constructor Author: Marco Kraus <marco@klear.org> Parameters: KlearConfig  Configurationobject to setup tuner

CKlearAppTuner::~CKlearAppTuner (   )  [virtual]

Destructor. Author: Marco Kraus <marco@klear.org>

---

Member Function Documentation

void CKlearAppTuner::run (   )  [pure virtual]

starts the threaded main method, defined abstract Author: Marco Kraus <marco@klear.org> Return values: void  no retval Implemented in CKlearAppTunerC, CKlearAppTunerS, and CKlearAppTunerT.

void CKlearAppTuner::setChannel (  const QString &  ChannelName  )  [virtual]

Sets the local ChannelName to tell tuner which channel wants to be tuned in. Author: Marco Kraus <marco@klear.org> Return values: void  no retval Parameters: ChannelName  Channelname to tell tuner which channel wants to be tuned in

---

Field Documentation

int CKlearAppTuner::adapter [protected]

DVB adapter number in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

QString CKlearAppTuner::ChannelName [protected]

currentlich tuning channelname Author: Marco Kraus <marco@klear.org>

QString CKlearAppTuner::ConfigFileAbsolute [protected]

Absolute filename to configuration file. Author: Marco Kraus <marco@klear.org>

int CKlearAppTuner::demux [protected]

DVB demux number in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

QString CKlearAppTuner::DEMUX_DEV [protected]

demux-name in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

int CKlearAppTuner::dvr [protected]

DVB dvr number in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

int CKlearAppTuner::frontend [protected]

DVB frontend number in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

QString CKlearAppTuner::FRONTEND_DEV [protected]

frontend-name in dvbutil compatible format. Author: Marco Kraus <marco@klear.org>

bool CKlearAppTuner::isFinished

isFinished flag, tells other threads that the tuner has finished. Will be set with setter/getter in future. Author: Marco Kraus <marco@klear.org>

bool CKlearAppTuner::isReady

isReady flag, tells other thread that tuner is set up. Will be set with setter/getter in future. Author: Marco Kraus <marco@klear.org>

CKlearAppConfig* CKlearAppTuner::KlearConfig [protected]

local configuration object, for derived tuner classes Author: Marco Kraus <marco@klear.org>

---

The documentation for this class was generated from the following file:

• cvs/klear/src/App/Tuner/CKlearAppTuner.h

---
